T45 82.5mm (Road) : 3-in-1
◆ 3-in-1 Core System (HTII / DUB / 3D+)
◆ G5 Ceramic Bearing / P05 Steel Bearing
$60~120
INQUIRY

The 3 in 1 Core System BB set can accommodate for three different crank spindle specifications. Easily switch between different cranks without the need to change the Bottom Bracket.



The ceramic bearings utilize G5-grade ceramic balls and are paired with precisely machined steel race, delivering excellent rotational performance for riders.



The P05 precision steel ball bearings, for reassuringly high smoothness and durability. 0.005 mm for eccentricity (out of roundness) of the track in the inner race. That´s precise.

T45 82.5mm (Road) : 3-in-1
 Type Road Bike

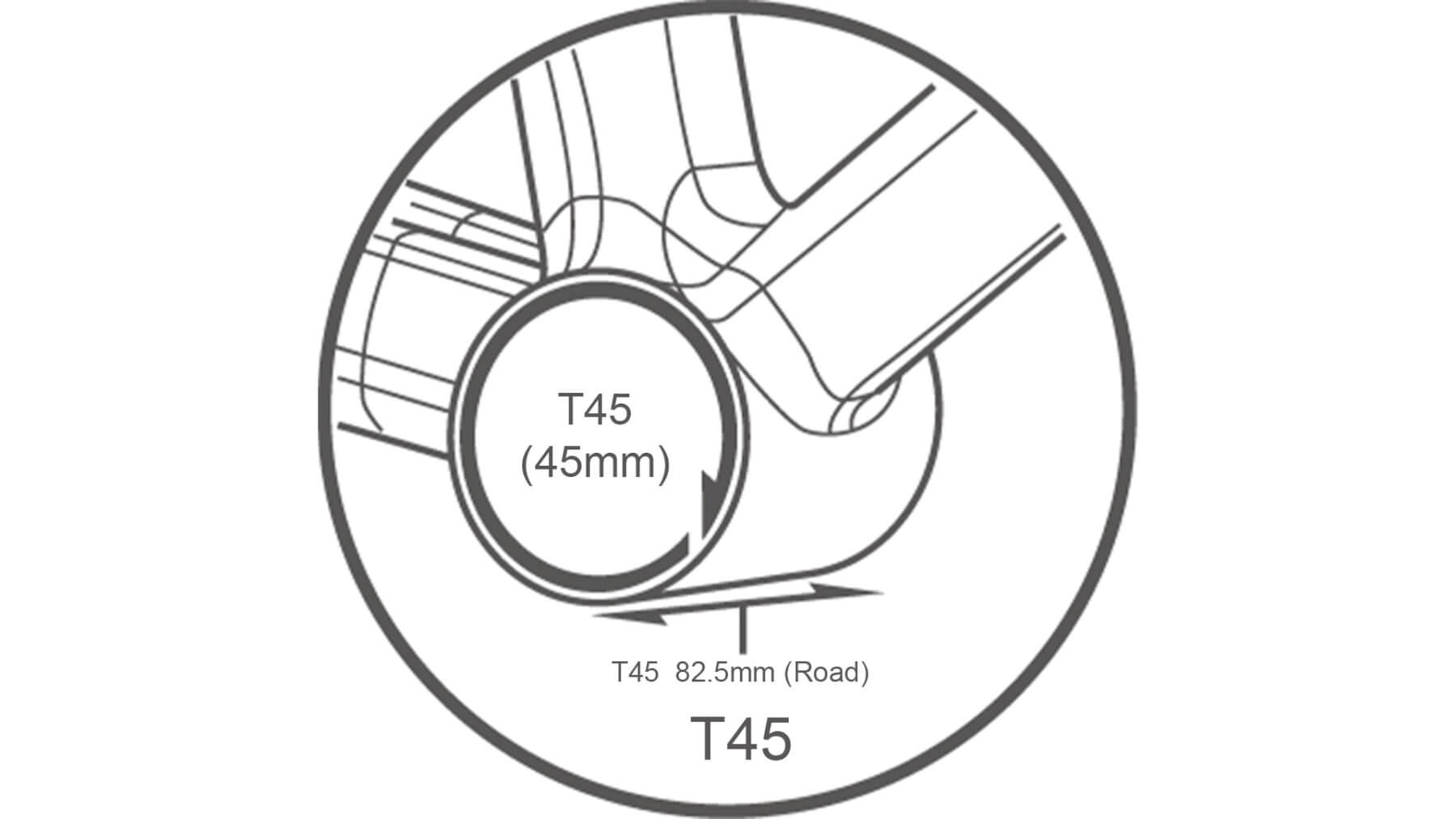

 Frame Spec T45
 DIA.45mm x Width 82.5mm
 Crank Spec SHIMANO HTII (dia.24mm)
 SRAM DUB (dia.28.99mm)
 ROTOR 3D+ (dia.30mm)
 Bearing G5 Ceramic Bearing
 P05 Steel Bearing
 Tool Notch Notch : 12T
 O.D. : 50mm
 Material Cup : Alloy 6061
 Sleeve : PA+GF composite material
 Accessories 30mm Cap*2
 28.99mm Cap*2
 28.99mm Spacer*1 (Drive Side)
 24mm Cap*2
 Color Black
 Weight G5 : 82g/set (w/o cap)
 P05 : 85g/set (w/o cap)

TRiPEAK BB Installation-For T45-Road 3 in1 Core System
Manual PDF Download
