PF30A 73mm (Road) : 3-in-1
◆ 3-in-1 Core System (HTII / DUB / 3D+)
◆ G5 Ceramic Bearing / P05 Steel Bearing
◆ ZeroCreak Eliminate Noise Disturbances
◆ Patented Twist-Fit Design
$80~140
INQUIRY

The ceramic bearings utilize G5-grade ceramic balls and are paired with precisely machined steel race, delivering excellent rotational performance for riders.


The P05 precision steel ball bearings, for reassuringly high smoothness and durability. 0.005 mm for eccentricity (out of roundness) of the track in the inner race. That´s precise.



The Twist-Fit design accomodates  press-fit BB specificied frames, making the BB installation and removal easier. Dual-sided locking enhances the precision of the spindle and avoids creaking noises, by achieving a perfect alignment between the bottom bracket and the crankset spindle.



The patented plastic-steel bushing design is a big relief for Press-Fit frame BB users. It prevents wear on the frame's bottom bracket shell when the BB is pressed in. Snug Fit effectively eliminates noise and corrects bottom bracket tolerances.



The 3 in 1 Core System BB set can accommodate for three different crank spindle specifications. Easily switch between different cranks without the need to change the Bottom Bracket.

PF30A 73mm (Road) : 3-in-1
 Type Road Bike

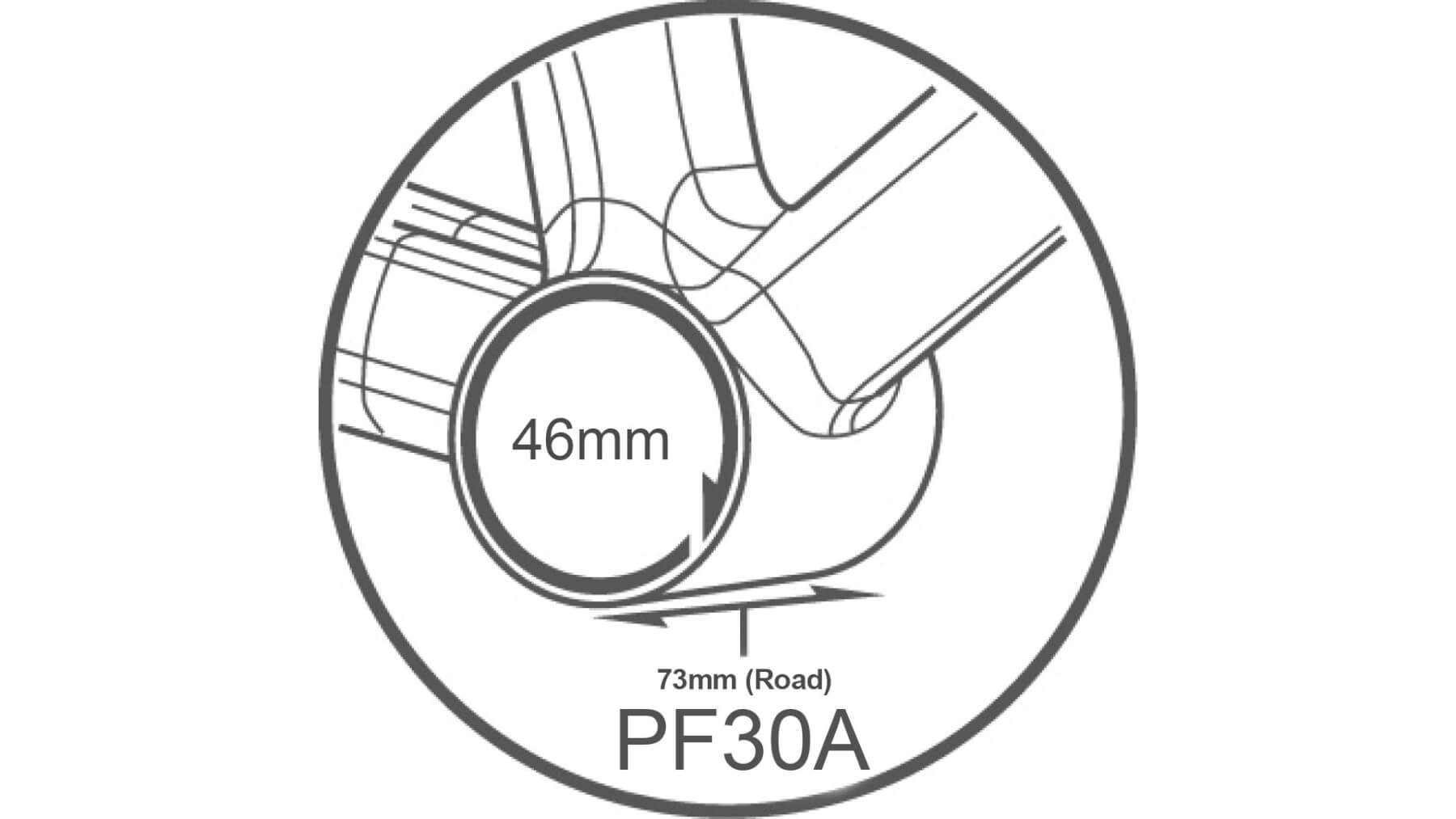

 Frame Spec PF30A
 DIA.46mm x Width 73mm
 Crank Spec SHIMANO HTII (dia.24mm)
 SRAM DUB (dia.28.99mm)
 ROTOR 3D+ (dia.30mm)
 Bearing G5 Ceramic Bearing
 P05 Steel Bearing
 Tool Notch Notch : 12T
 O.D. : 50mm
 Material Cup : Alloy 6061
 Snug Ring : PA+GF composite material
 Accessories 30mm Cap*2
 28.99mm Cap*2
 28.99mm Spacer*1 (Drive Side)
 24mm Cap*2
 Color Black
 Weight G5 : 122g/set (w/o cap)
 P05 : 125g/set (w/o cap)

TRiPEAK TWIST-FIT BB Installation-For PF30A-ROAD 3in1 Core System
Manual PDF Download
