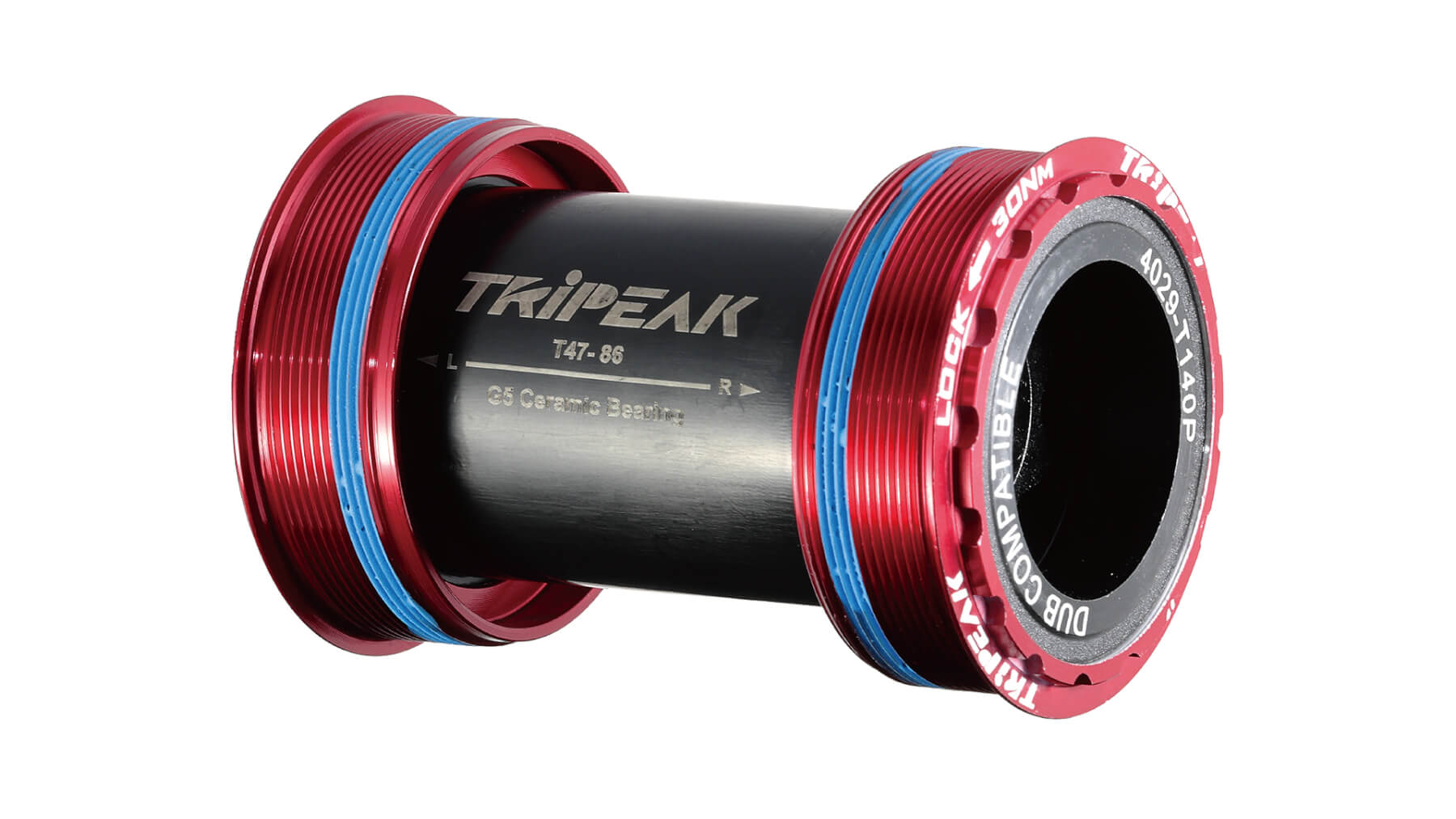

3in1-T47-86-Red

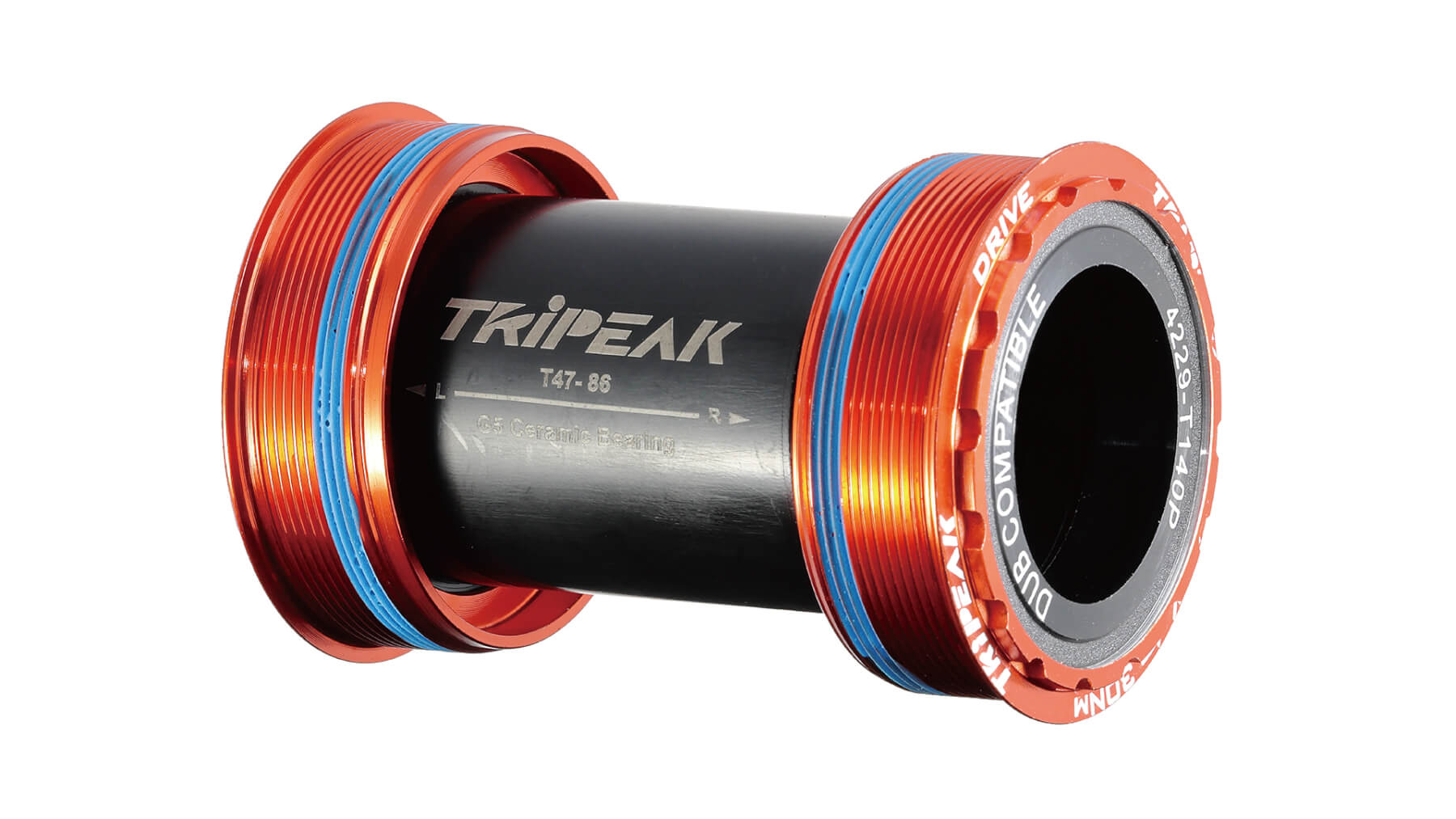

3in1-T47-86-Orange

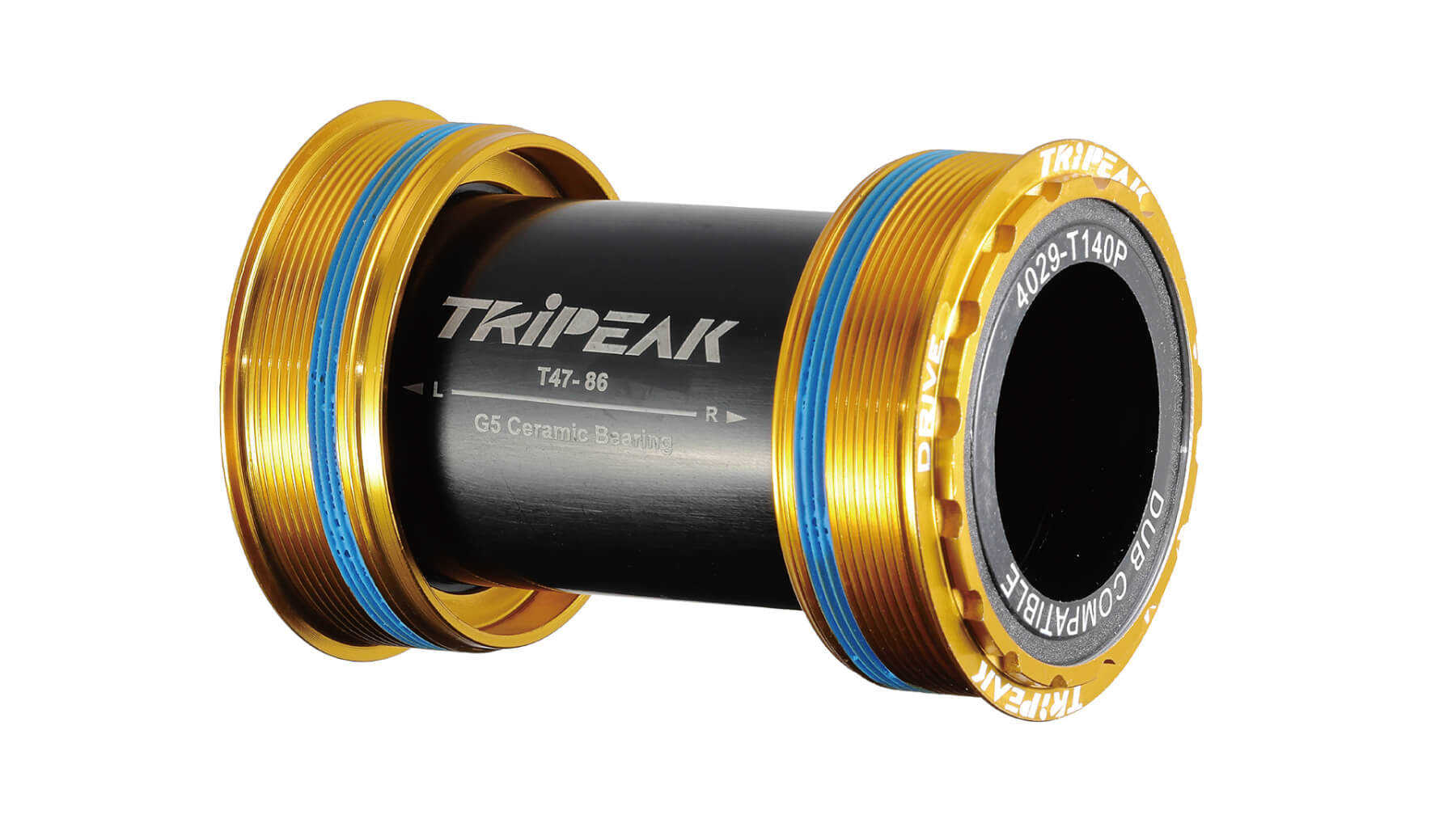

3in1-T47-86-Gold

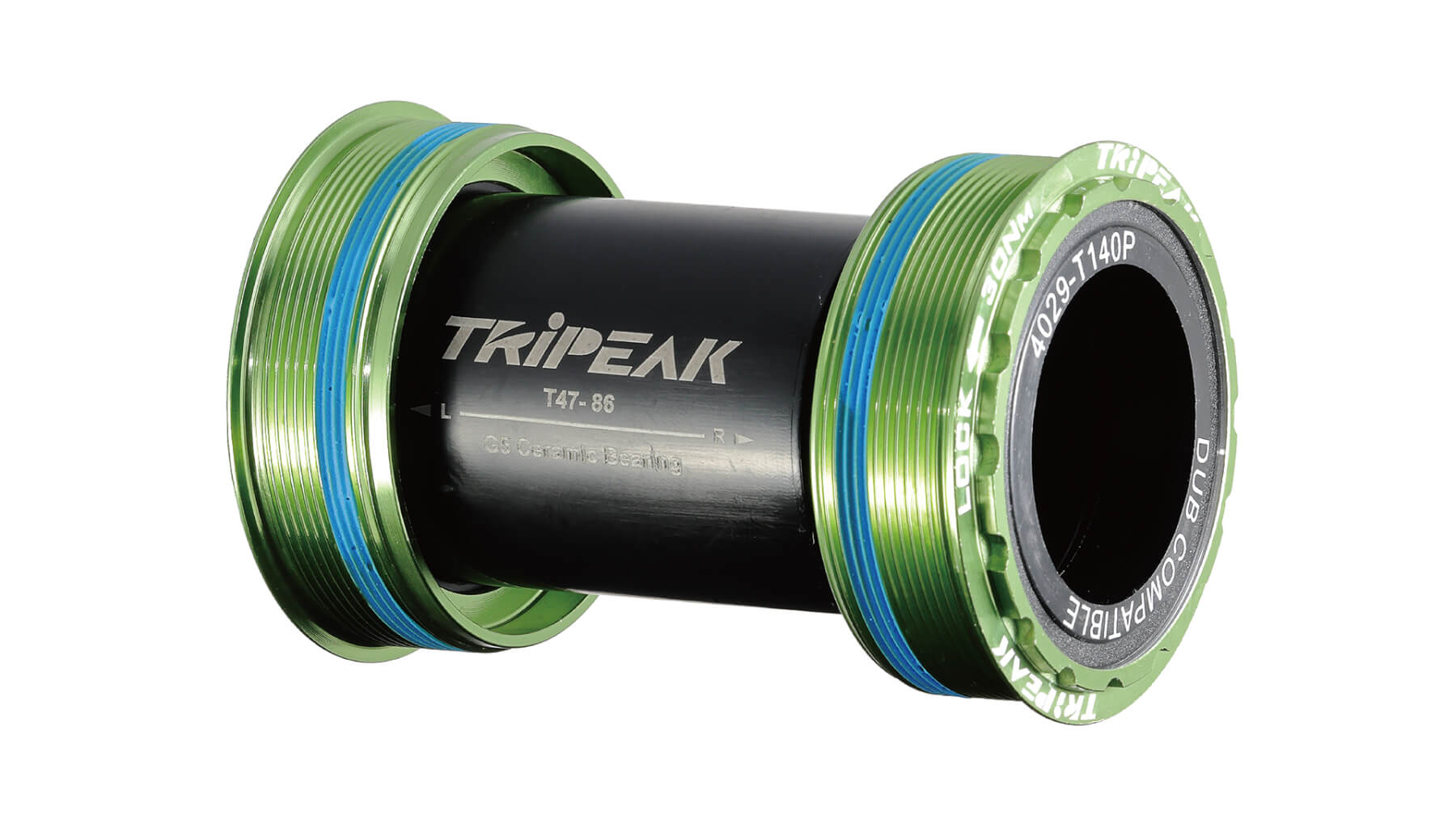

3in1-T47-86-Green

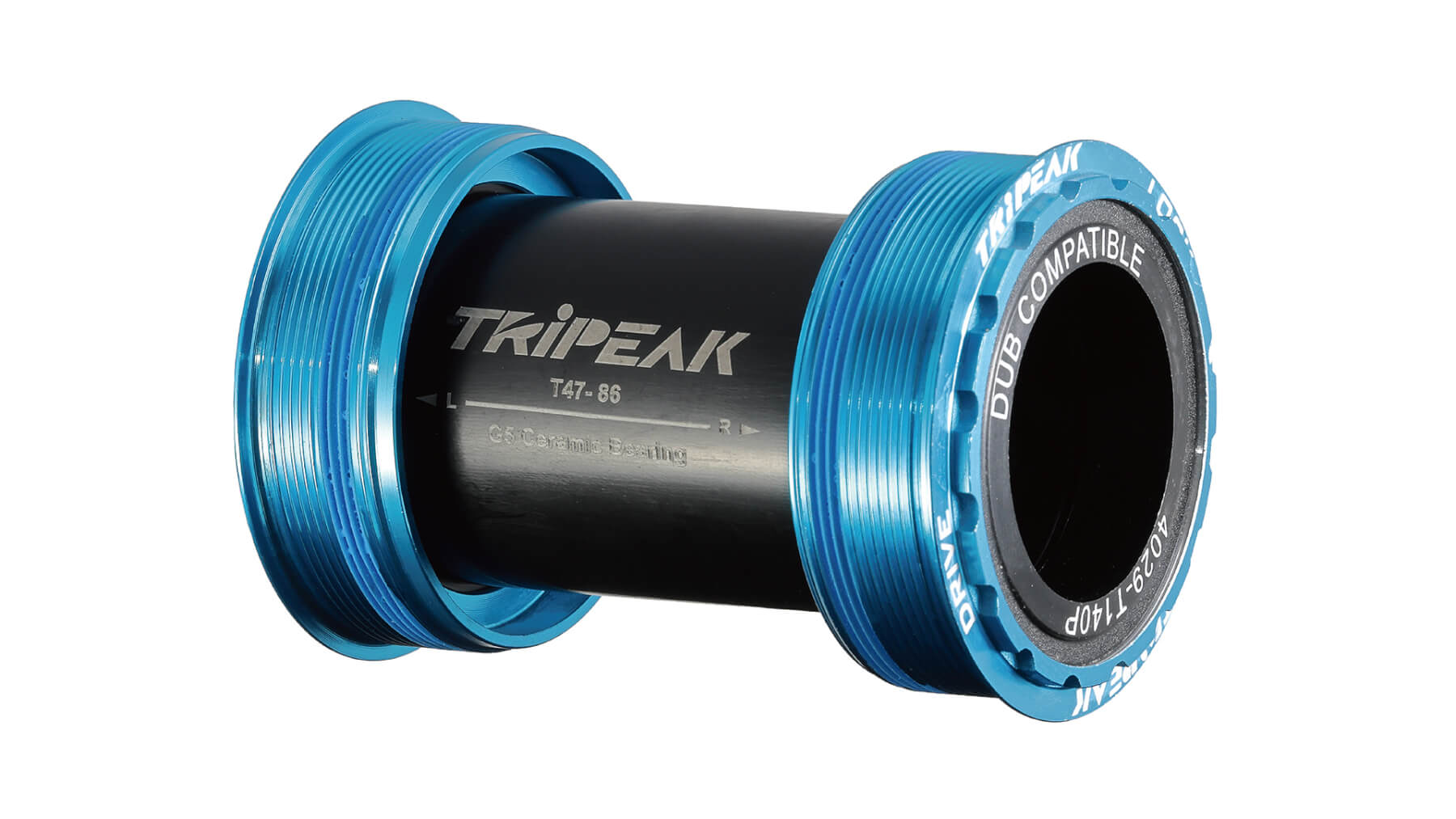

3in1-T47-86-LightBlue
3in1-T47-86-DeepBlue

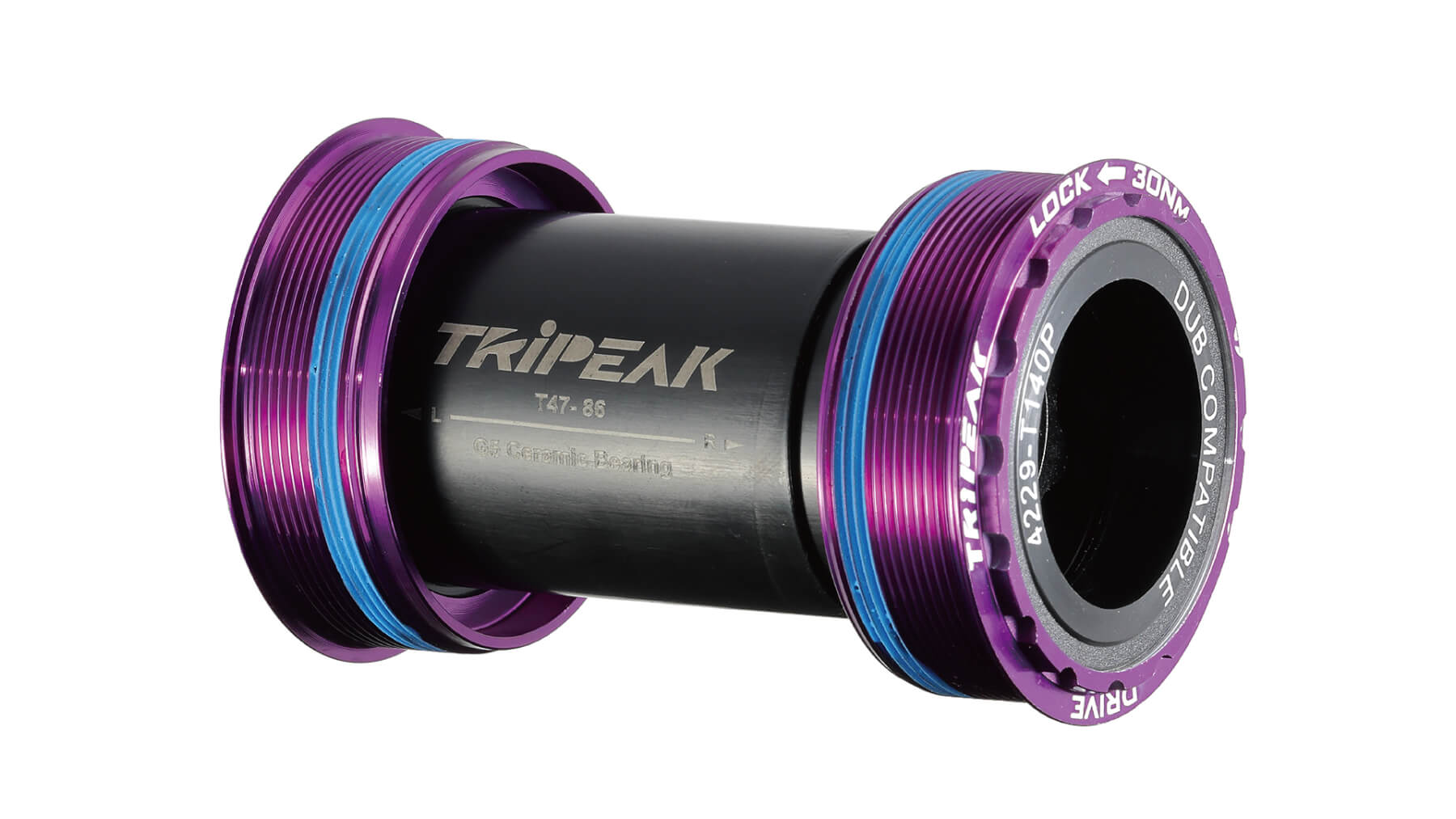

3in1-T47-86-Purple
3in1-T47-86-Black
3in1-T47-86-Silver-240926031013-10
3in1-T47-86-Pink-240926031108-7
3in1-T47-86-Red
3in1-T47-86-Orange
3in1-T47-86-Gold
3in1-T47-86-Green
3in1-T47-86-LightBlue
3in1-T47-86-DeepBlue
3in1-T47-86-Purple
T47 86mm (Road) : 3-in-1
◆ 3-in-1 Core System (HTII / DUB / 3D+)
◆ G5 Ceramic Bearing / P05 Steel Bearing
◆ 16 Notch Standard BB Tool
$60~120
INQUIRY

The 3 in 1 Core System BB set can accommodate for three different crank spindle specifications. Easily switch between different cranks without the need to change the Bottom Bracket.



Compatible with the universal BB tool with an O.D. 44mm, eliminating the need for various specialized tools.



The ceramic bearings utilize G5-grade ceramic balls and are paired with precisely machined steel race, delivering excellent rotational performance for riders.



The P05 precision steel ball bearings, for reassuringly high smoothness and durability. 0.005 mm for eccentricity (out of roundness) of the track in the inner race. That´s precise.

T47 86mm (Road) : 3-in-1
 Type Road Bike

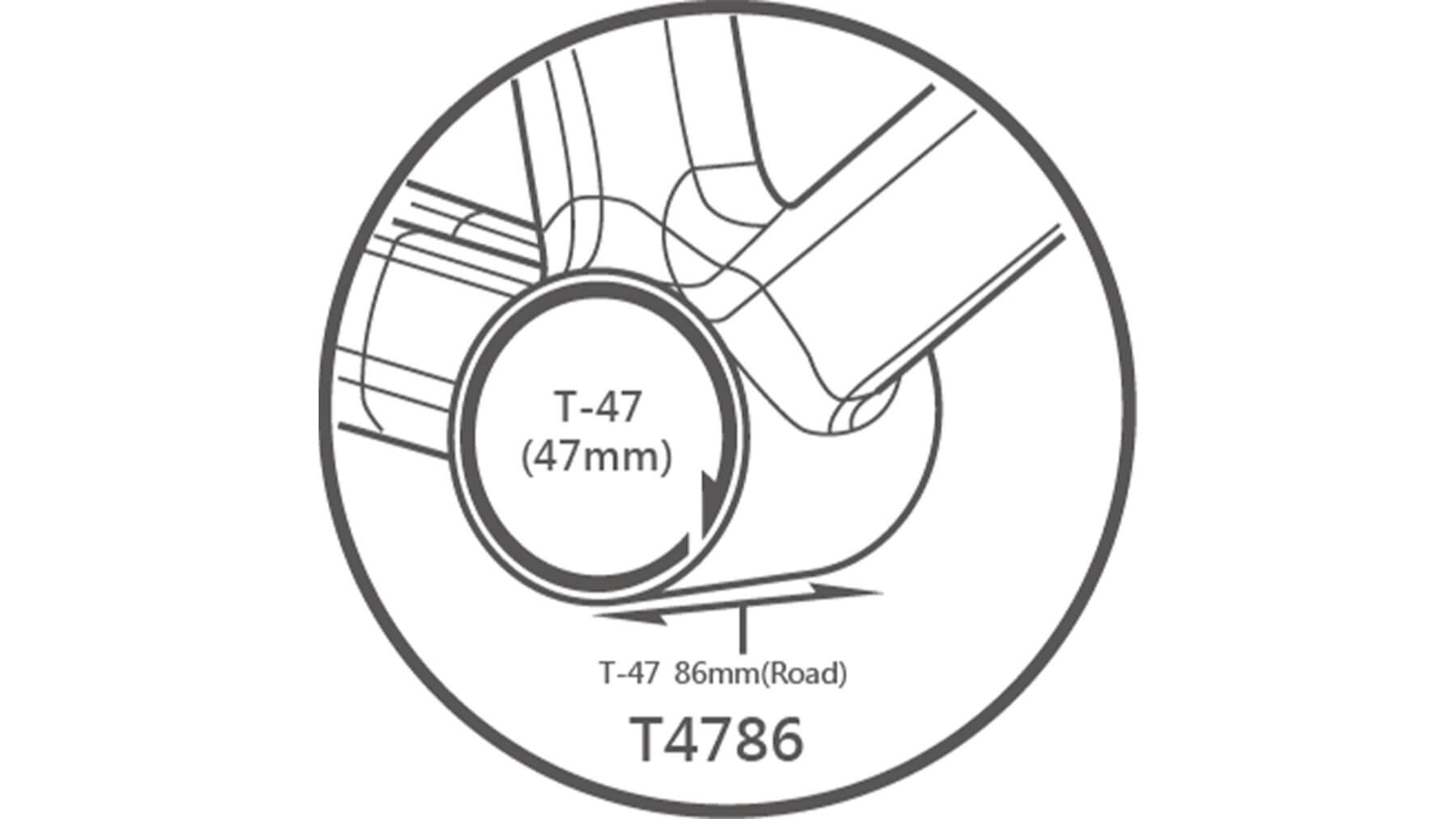

 Frame Spec T47
 DIA.47mm x Width 86mm
 Crank Spec SHIMANO HTII (dia.24mm)
 SRAM DUB (dia.28.99mm)
 ROTOR 3D+ (dia.30mm)
 Bearing G5 Ceramic Bearing
 P05 Steel Bearing
 Tool Notch Notch : 16T
 O.D. : 44mm
 Material Cup : Alloy 6061
 Sleeve : PA+GF composite material
 Accessories 30mm Cap*2
 28.99mm Cap*2
 28.99mm Spacer*1 (Drive Side)
 24mm Cap*2
 Color Black
 Weight G5 : 74g/set (w/o cap)
 P05 : 77g/set (w/o cap)

TRiPEAK BB Installation-For T47 86mm-Road 3 in1 Core System
Manual PDF Download
