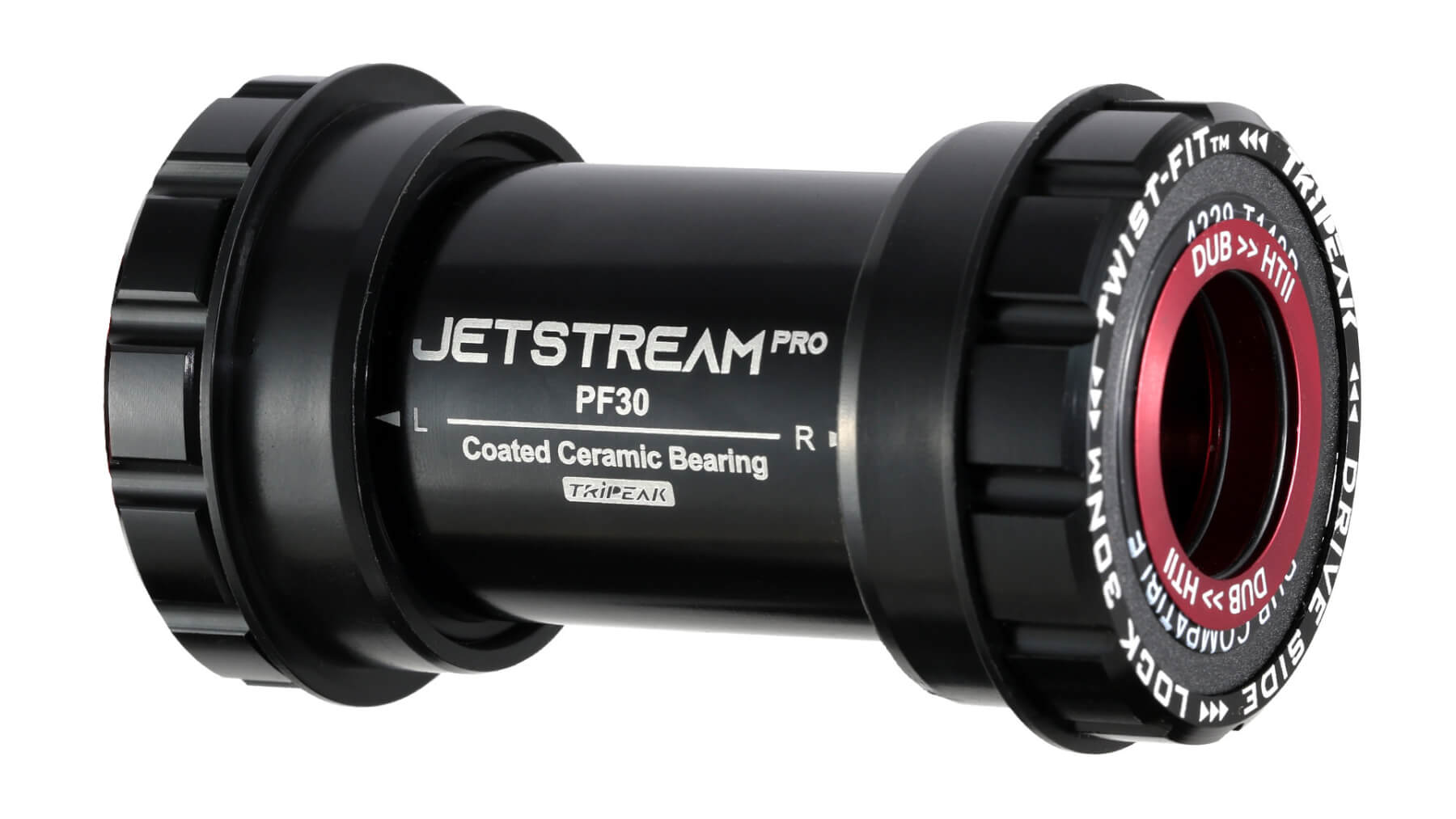

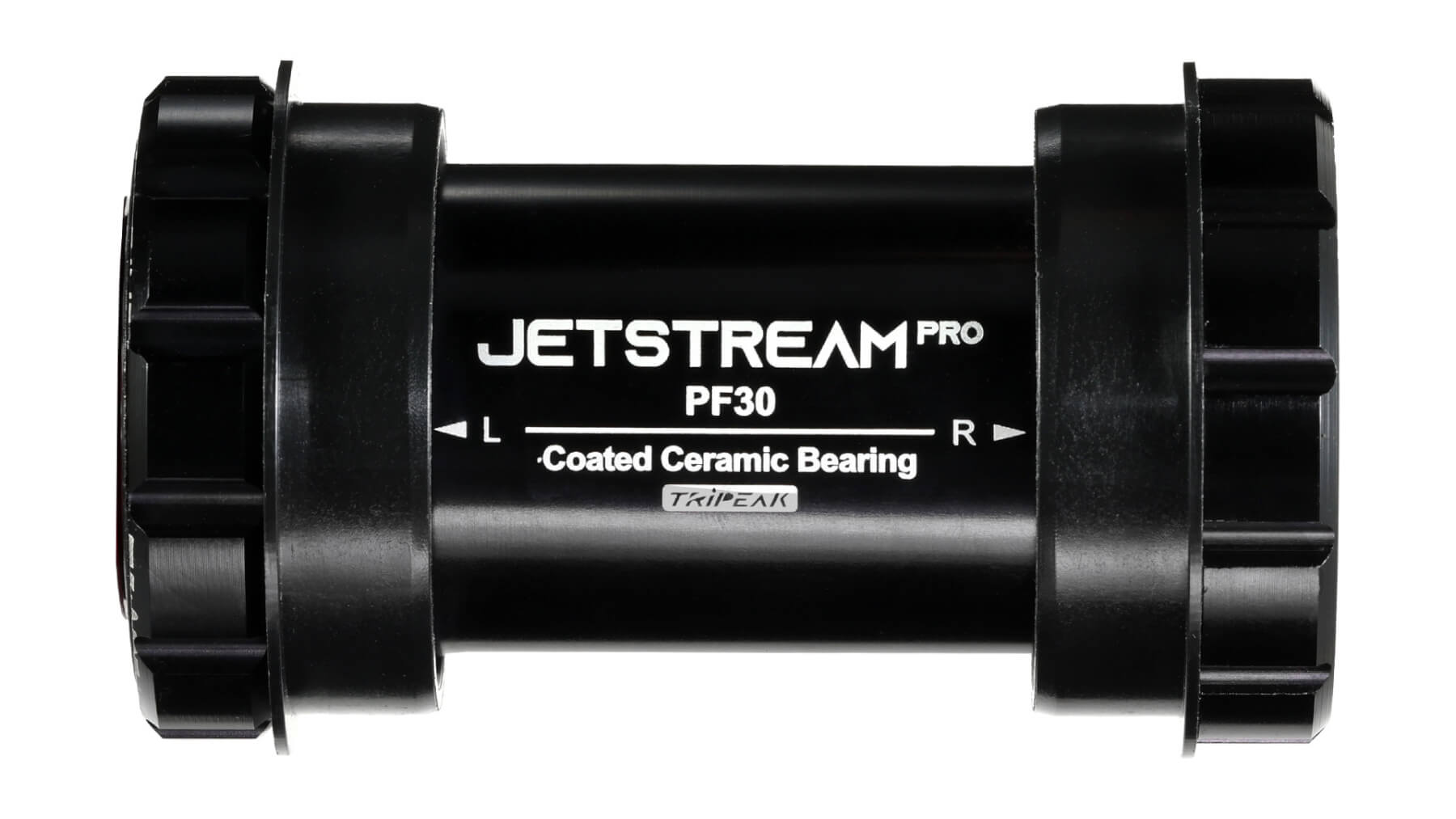

JETSTREAM PRO - PF30
- JetStream Pro -
The highest level of exceptional efficiency and durability.
◆ High-Performance NC Race Ceramic Bearing
◆ G3 Perfectly Round Ceramic Balls
◆ ZeroCreak Eliminate Noise Disturbances
◆ Patented Twist-Fit Design
◆ 3-in-1 Core System (HTII / DUB / 3D+)
◆ 4-Year Warranty
$270.0
INQUIRY
JetStream Pro Series

Jetstream Pro Series stands for Rotation Optimized Ceramic Technologies. Because it takes more than just ceramic balls to minimize friction and gain watts. It´s about the composition of race, seal, lubricant and balls. Jetstream Pro Series delivers the right composition for the purpose. The JetStream Pro series offers exceptional efficiency and durability, backed by a reassuring four-year warranty for users.



G3 Ceramic Ball

G3-grade perfectly round ceramic balls create lower rotational resistance, allowing your power better to convert to speed.



NC Race

NC Race Bearings have a Nano coating on outer & inner races, This dry film can minimize the coefficient of friction to as low as 0.03 dynamic, and 0.07 for static. The Nano Coating overcomes or reduces mechanical lubrication problems improving performance and extending service life >300%



While Supra LV is focused on pure Performance of the Pulley Wheel, TRiPEAK chooses a different  lubricant character for the ceramic bearing Bottom Bracket: The Eterna Low Viscosity (LV) Lubricant has the characteristics to be durable reliable and keep rotation silent.



ZERO Contact Seal, a non-contact bearing seal, provides complete coverage without increasing rotational resistance, striking the optimal balance between efficiency and protection.



The Twist-Fit design accomodates  press-fit BB specificied frames, making the BB installation and removal easier. Dual-sided locking enhances the precision of the spindle and avoids creaking noises, by achieving a perfect alignment between the bottom bracket and the crankset spindle.



The patented plastic-steel bushing design is a big relief for Press-Fit frame BB users. It prevents wear on the frame's bottom bracket shell when the BB is pressed in. Snug Fit effectively eliminates noise and corrects bottom bracket tolerances.



The 3 in 1 Core System BB set can accommodate for three different crank spindle specifications. Easily switch between different cranks without the need to change the Bottom Bracket.

JETSTREAM PRO
-  PF30 68mm (Road)  -
 Type Road Bike
 Frame Spec PF30
 DIA.42mm x Width 68mm
 Crank Spec SHIMANO HTII (dia.24mm)
 SRAM DUB (dia.28.99mm)
 ROTOR 3D+ (dia.30mm)
 Bearing NC Race G3 Ceramic Bearing
 Tool Notch Notch : 12T
 O.D. : 50mm
 Material Cup : Alloy 6061
 Snug Ring : PA+GF composite material
 Accessories 30mm Cap*2
 28.99mm Cap*2
 28.99mm Spacer*1 (Drive Side)
 24mm Cap*2
 Eterna LV lubricant 3ml*1
 Color Black
 Weight 130g/set (w/o cap)

Jetstream PRO BB Installation-For PF30-Road 3 in1 Core System
Manual PDF Download
